Manifold Valve

December 12 2016
manifold-valve

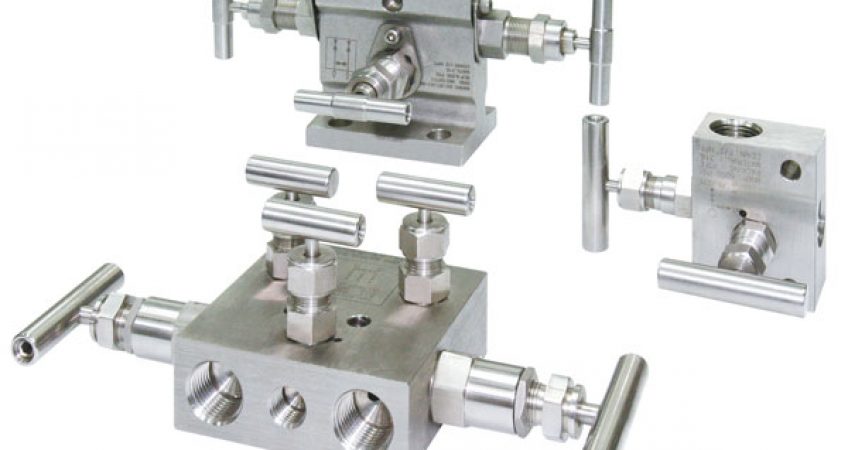

Manifold Valve : Valve manifold is used for calibration systems. It is commonly used to regulate the flow of fluids with proper arrangement of the opening and closing of the device. Valve body is manufactured from high grade forged material. Material of construction is depends upon the application area of the valves. It provides leak tight seal. It contains screwed bonnet. It has single piece, weld less body. It is available in different manifold.

  • Leak proof
  • Long service life
  • Easy to operate

High grade construction material

SPECIFICATION:

  • Max pressure: 6000 PSI
  • temperature of media: 250
  • Material of construction: SS 316 or SS 304
  • Input port: ½” NPT female
  • Output port: ½” NPT female
  • Bolt: UNF7/16-20
  • Screw: 54 mm x 41.3 mm.
